Description

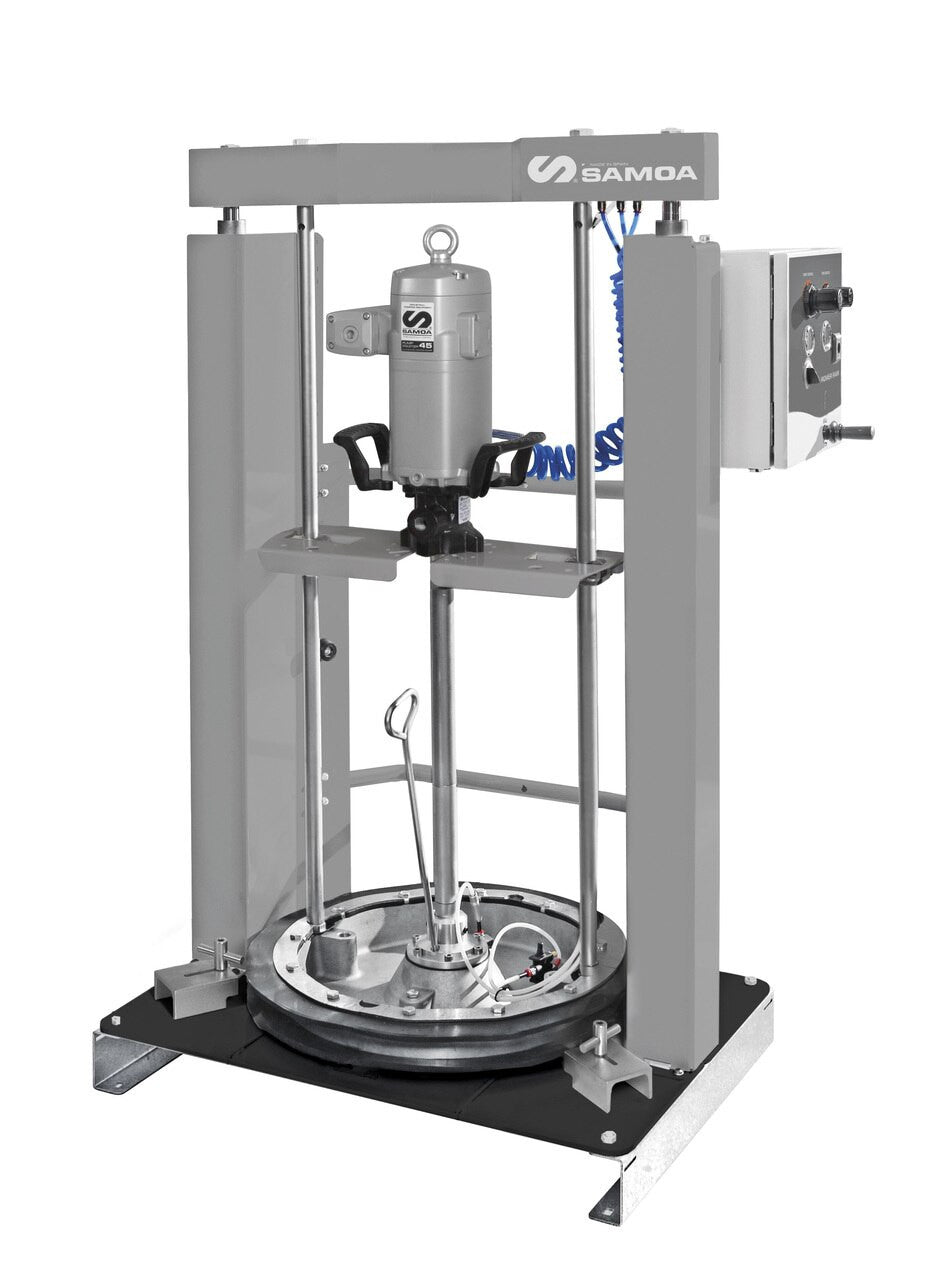

Pumpmaster 45 and Pumpmaster 60 grease pumps mounted onto an air operated inductor plate for use with high viscosity, hard to pump greases directly from 185kg drums.
When the double lip inductor plate is attached to the lower end of the pump tube, it exerts pneumatic, weight and atmospheric pressure on the material forcing pump priming. The inductor plate also serves as protection against contaminants and eliminates material waste.
The inductor system includes guide rods, drum retaining mechanism and a control box with the following features:
On/Off control of the pump
Up/Down control of the ram for easy drum exchange
Two independent air pressure regulators, one for the pump and the other for the power ram cylinders
Pump/Ram independent air pressure gauge
Empty drum shut-off safety feature
Automatic vacuum release
