Description

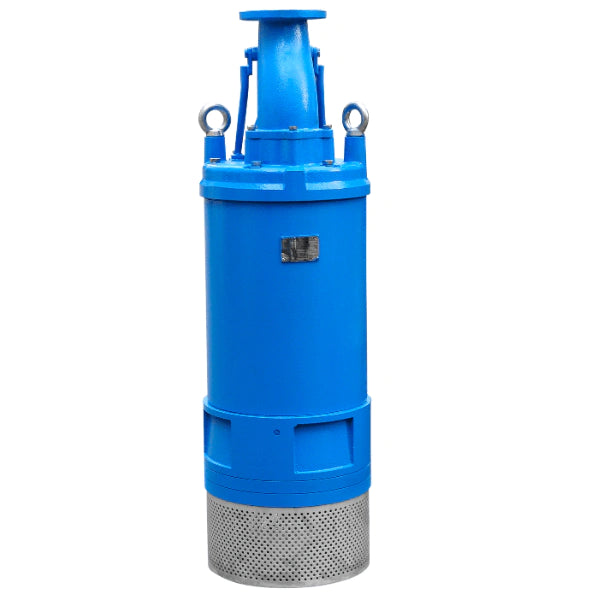

The KTH Range of submersible drainage pumps are constructed of cast iron for durability in tough site conditions. The double mechanical seal provides high-pressure resistance, allowing the KTH to be submerged at depths of 30 metres.
These pumps are suitable for hard-wearing applications such as civil engineering, construction, mining and quarries.
FEATURES
Maximum capacity: up to 108.3 l/sec
Maximum head: up to 130m
Power: 22kW (30HP) to 110kW (100HP)
Power supply: three-phase 400V ±10%, 50Hz
Insulation class: F
Protection class: IP68
Cable length: 20m
Maximum water temperature: up to 40°C
Maximum submersion depth: 30m
Double mechanical seal
APPLICATIONS
Mining
Quarrying
Construction
Civil engineering
BENEFITS
British design
Designed for reliability and long life
Robust
High head performance
